300
Maximum Loads (kg)
60
Minimum Clearance (cm)
12
Run-time (none load) (hour)
VSLAM & Lidar SLAM
Navigation Methods
Auto-delivery Mode

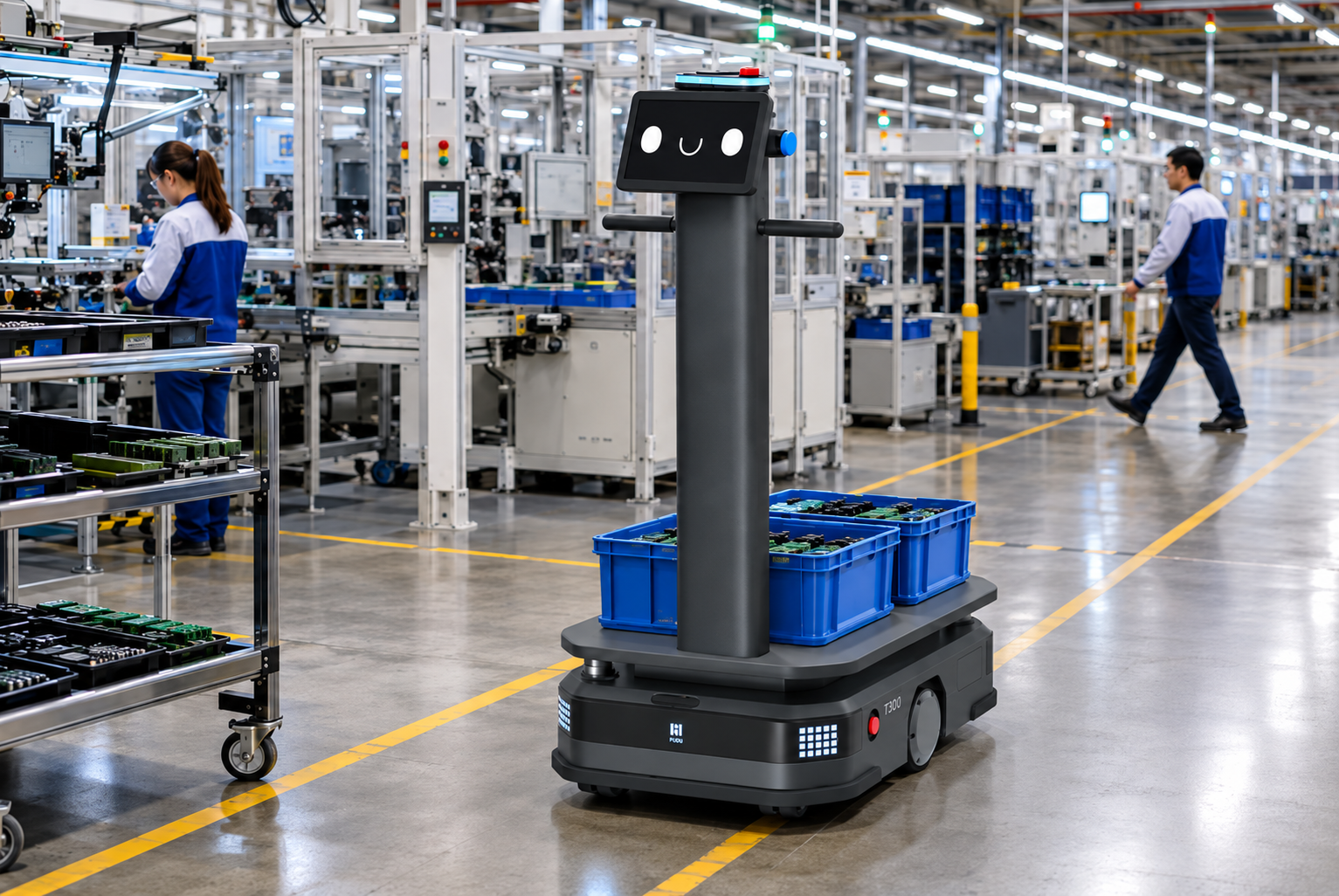

The T300 is capable of autonomous navigation and can deliver goods to any designated destination. Additionally, you can swiftly adjust the maps to accommodate changes in the production line.

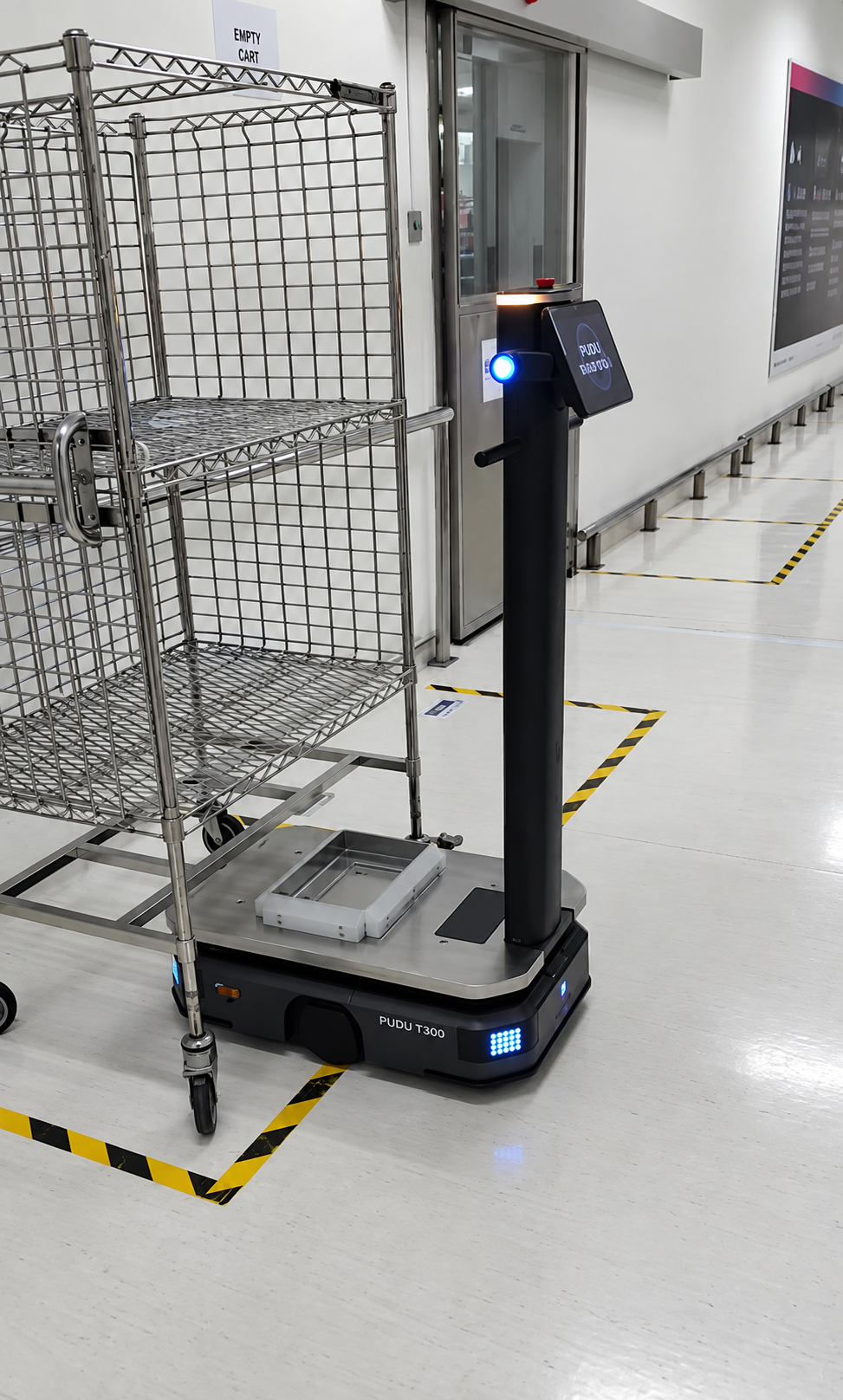

Follow Mode
The T300 employs visual recognition technology to facilitate an orderly queuing and following mechanism among multiple robots, a system primarily used for material preparation and the transportation of assorted goods.
Power-assist Mode
When manual intervention is required for specific tasks or map generation, the T300 is equipped with an electric power-assist system to facilitate hand-pushing operations, thereby enhancing delivery efficiency and convenience.
This allows the PUDU T300 to quickly adapt to changes in production layouts without the need for time-consuming reconfiguration or facility remodeling.
Compliant with the ISO 3691-4 standard, the T300 is equipped with multiple safety measures, including LiDAR sensors, depth cameras, collision protection sensors, and emergency stop buttons. It can identify various low-lying or suspended obstacles and recognize yellow safety lines on the floor, meeting the safety management requirements of factories.
The T300 ensures agile maneuverability in narrow human-robot cohabited spaces

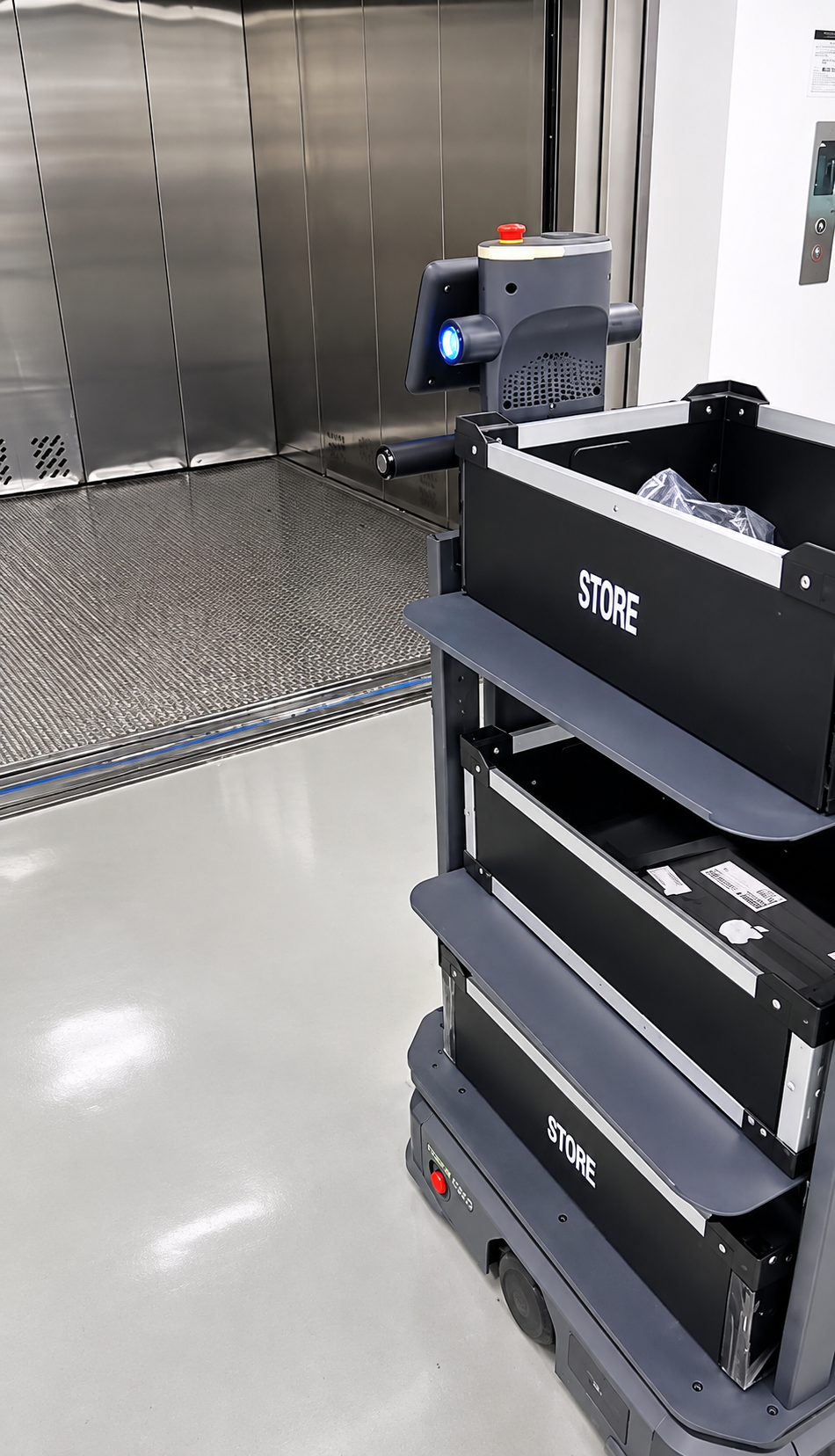

It facilitates precise material transport between production lines and is designed to meet elevator control requirements.
8 hours of continuous work, 2 hours for rapid charging
The T300 offers an 8-hour battery life and supports a fast 2-hour charging capability. Equipped with both automatic recharging and battery replacement options, it ensures uninterrupted service to fulfill round-the-clock operational requirements.
Easy Changable Battery
Automatic Recharging
High-brightness operation indicator lights, clearly displaying the robot's position
Traffic signal light design visually presenting driving intentions
Customizable buttons for more organized collaboration
Audible alerts for effective reminders
There is no need to perform cumbersome system opening actions, and it can be modularly connected to the production process and applied efficiently.
E-gate Control
Elevator Control
Call with pager
Manage with Pudu Link app
Machine Dimensions | 835mm×500mm×1350mm |
Machine Weight | 65kg (standard mode) |
Maximum Loads | 300 kg |
Battery Capacity | 30 Ah |
Charging Time | 2 h (from 0% to 90%) |
Run-time | 12h (none load) , 6h(fully load) |
Maximum Operating Speed | 1.2 m/s |
Navigation Methods | VSLAM & Lidar SLAM |
Minimum Path Clearance | 60 cm |
Threshold Crossing Height | Maximum 20 mm |
Groove Crossing Width | Maximum 35 mm |
Operating Environment | 0 ℃~ 40 ℃ |
Site Requirements | Indoor environment and flat ground |
