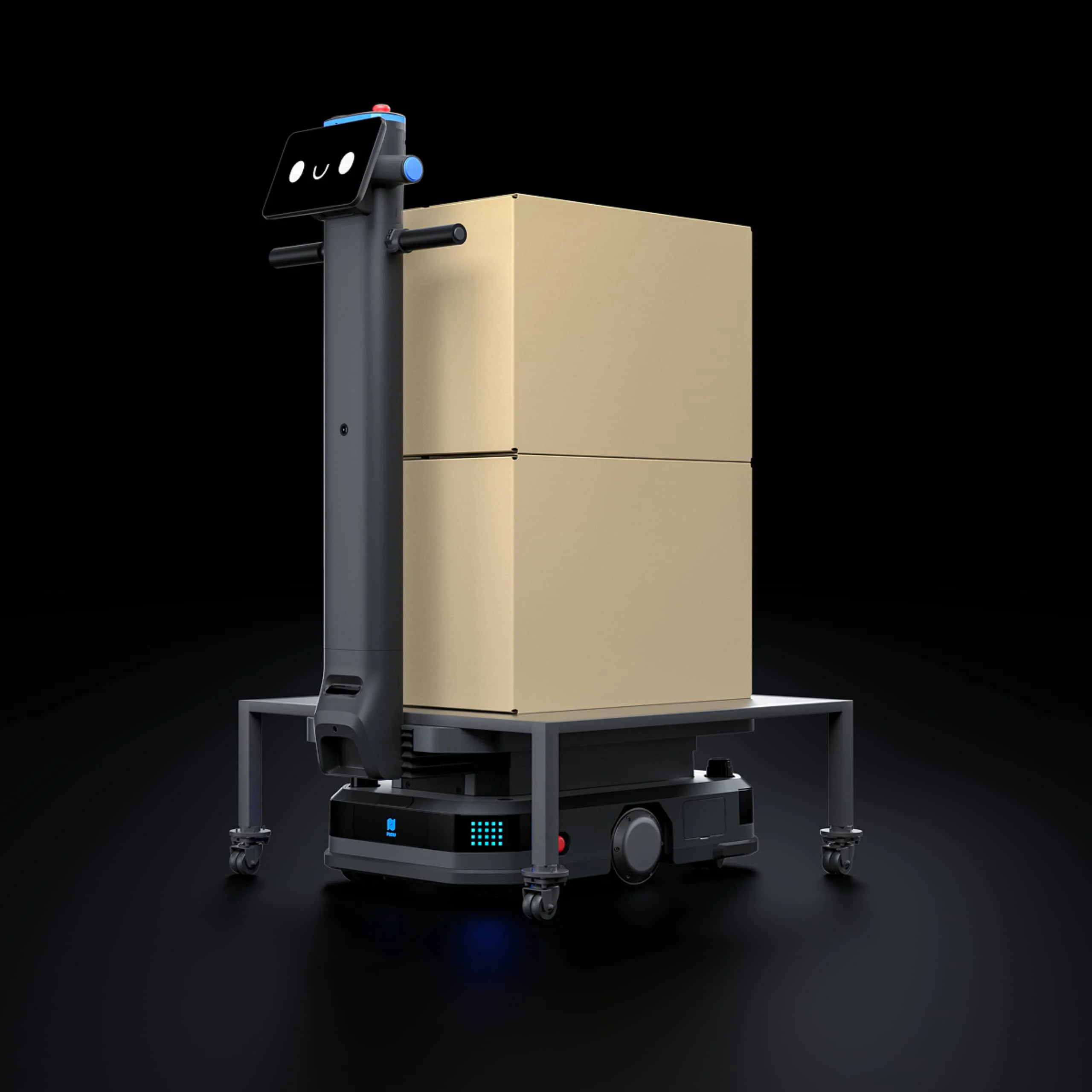

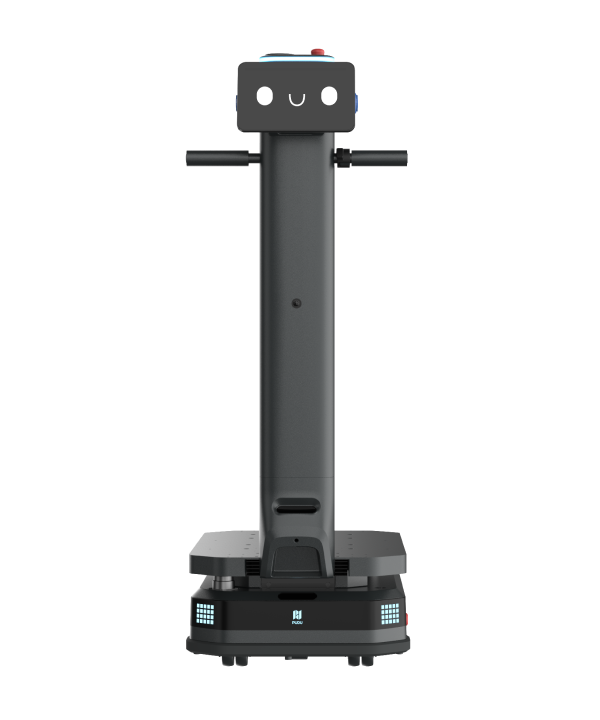

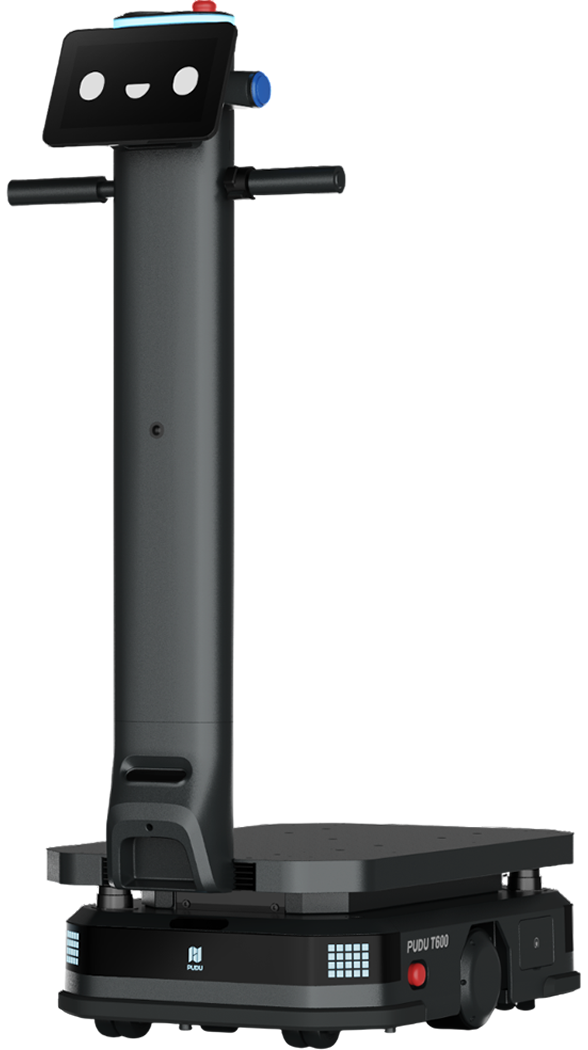

The PUDU T600 is a heavy-payload industrial delivery robot designed for moving large payloads. Centered around a robust mobile chassis, it features a touch screen and handle for user-friendly operation. Features: Equipped with a built-in screen, it can be operated directly without a central control system. Includes a power-assist switch, quick-access buttons, and front indicator lights for easy and efficient use.

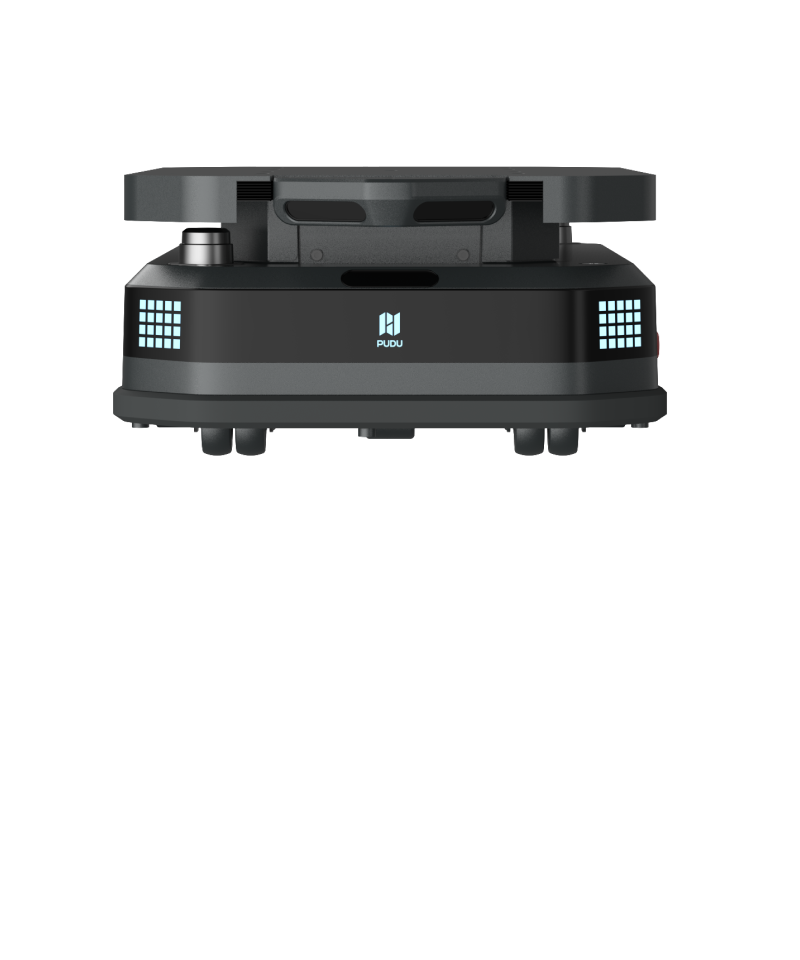

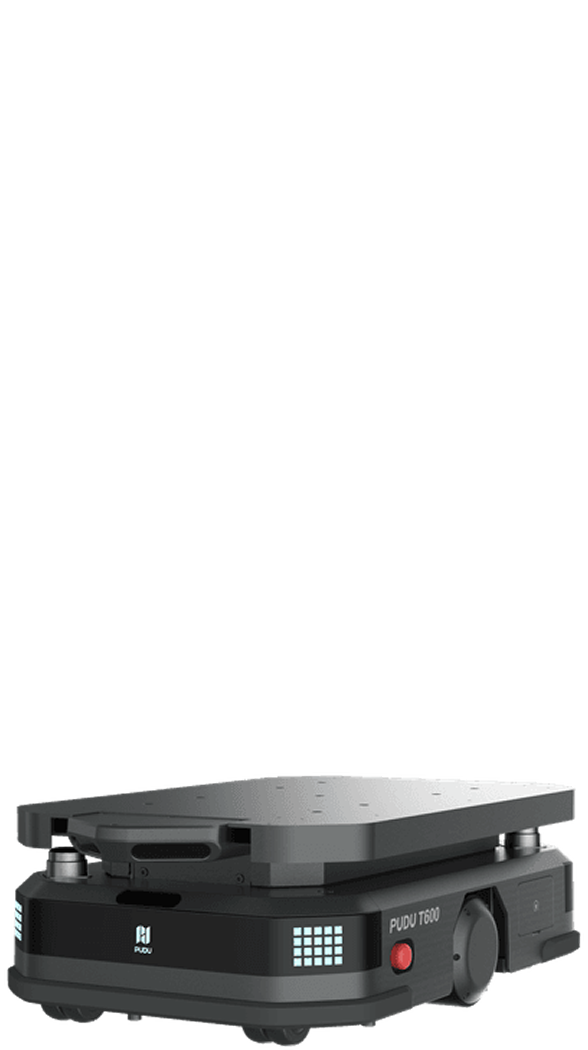

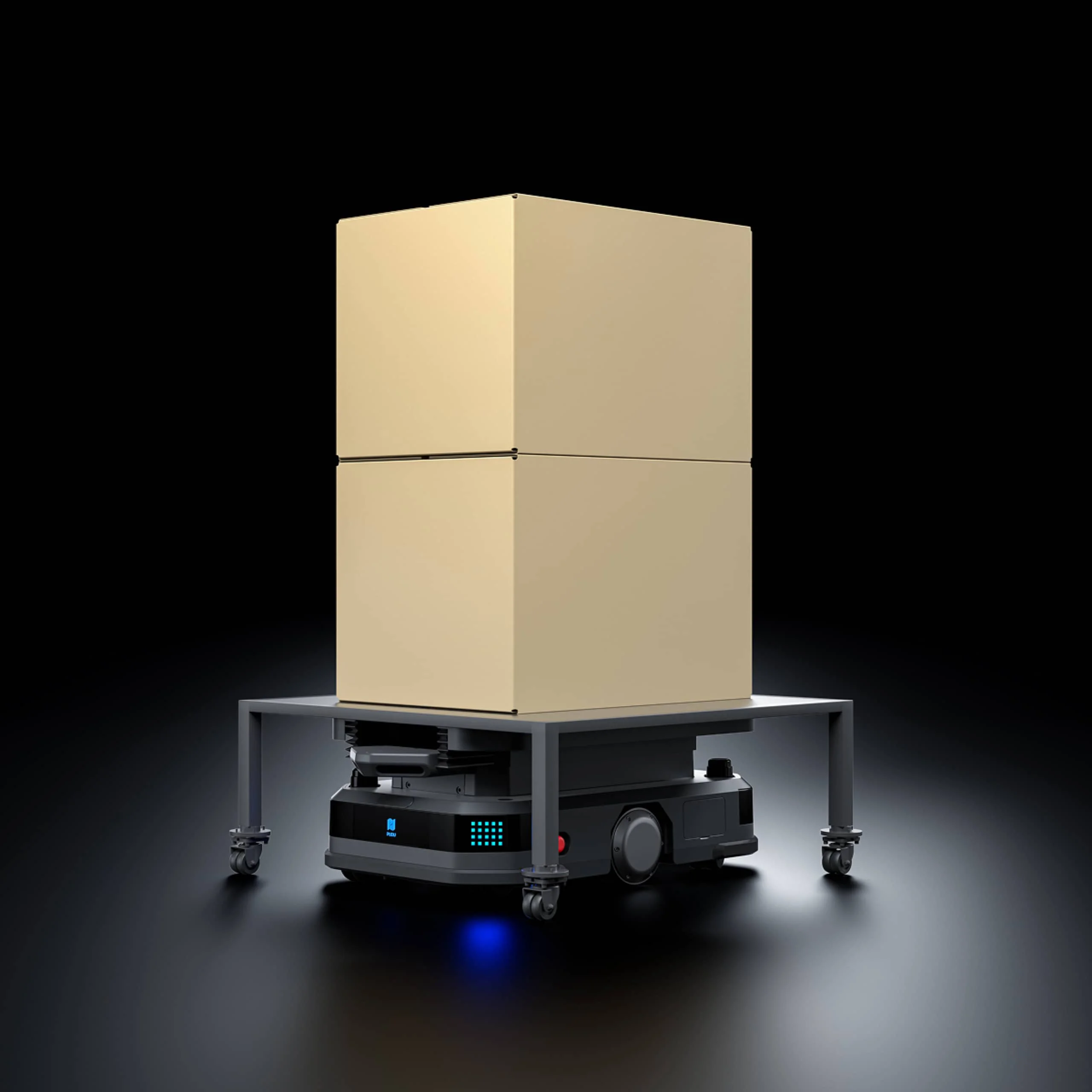

The PUDU T600 Underride Version is a chassis-based industrial delivery robot. With a low-profile design, it can navigate beneath racks and lift them autonomously for material handling. Features: Compact form allows it to travel underneath rack units, enabling flexible navigation. Capable of lifting cargo from the center underneath, requiring minimal path clearance.

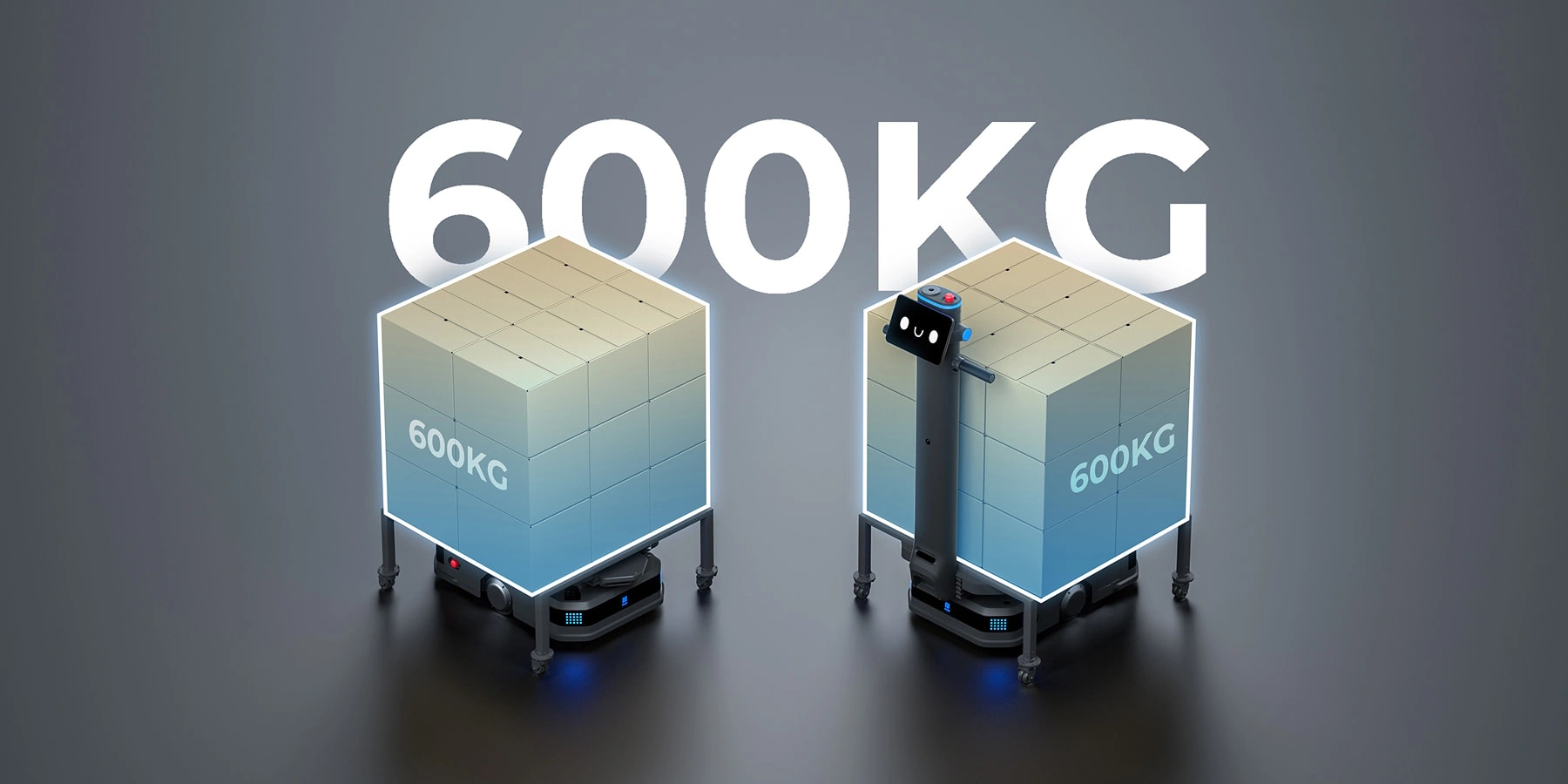

With a 600 KG payload capacity, the T600 series is built for heavy-payload material transport, greatly reducing delivery frequency and improving efficiency per trip.

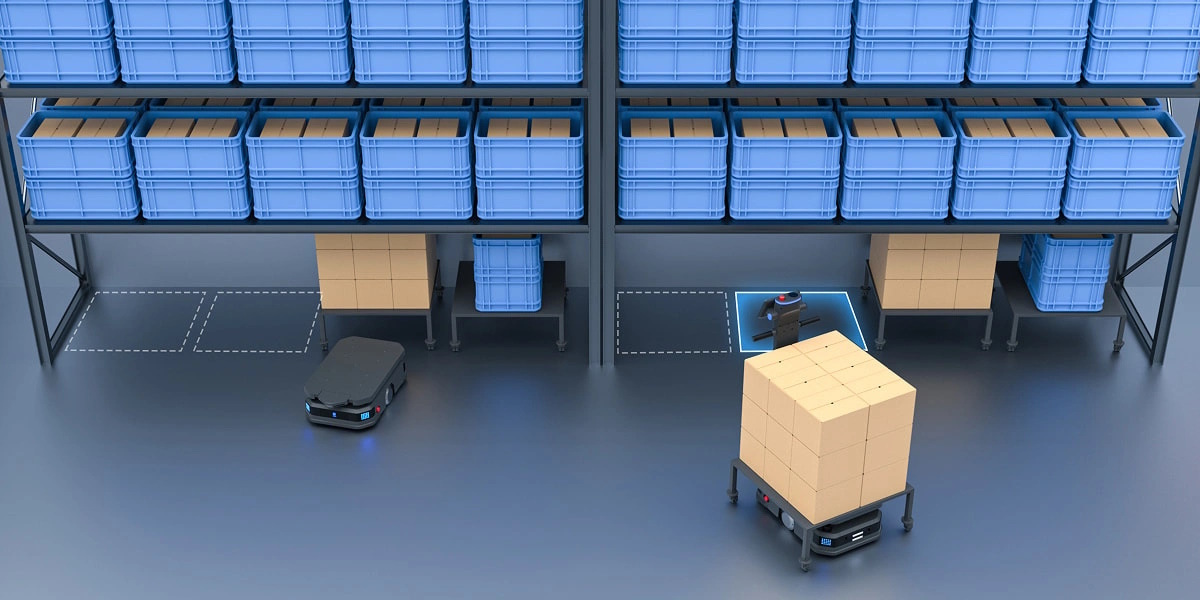

Powered by advanced navigation and perception systems, the T600 series intelligently identifies target storage locations and autonomously performs pick-and-place operations. This enables fully unmanned workflows, ensuring efficient and reliable warehouse operations.

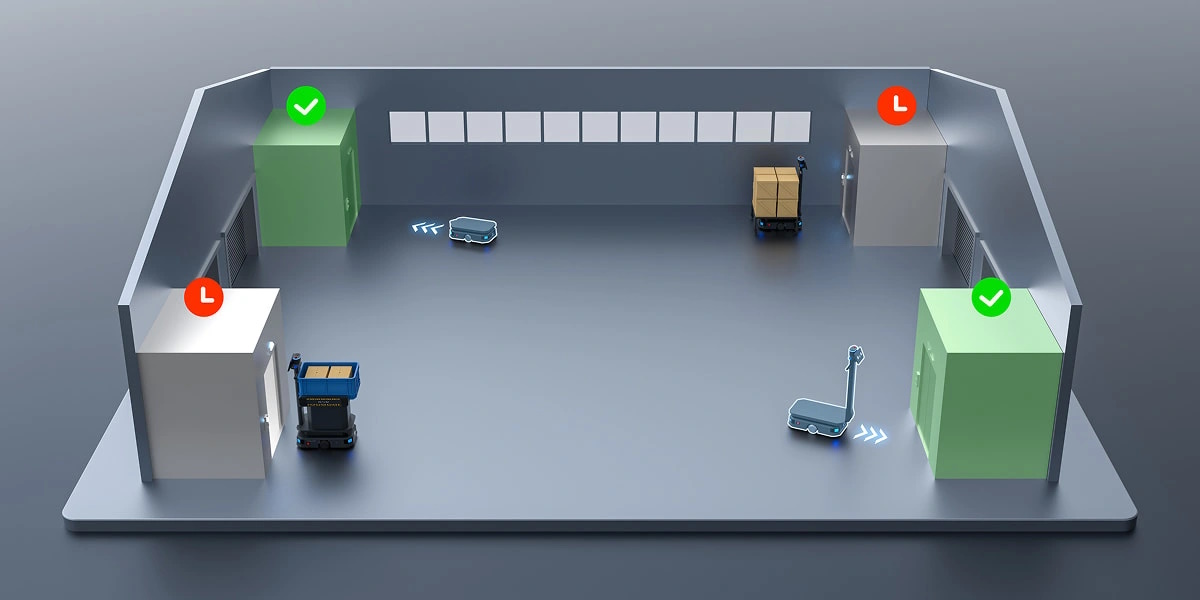

In busy multi-elevator scenarios, the system intelligently calls idle elevators first. The smart scheduling algorithm monitors elevator status in real time, prioritizing available elevators to avoid peak-time congestion and resource waste, significantly improving cross-floor delivery efficiency.

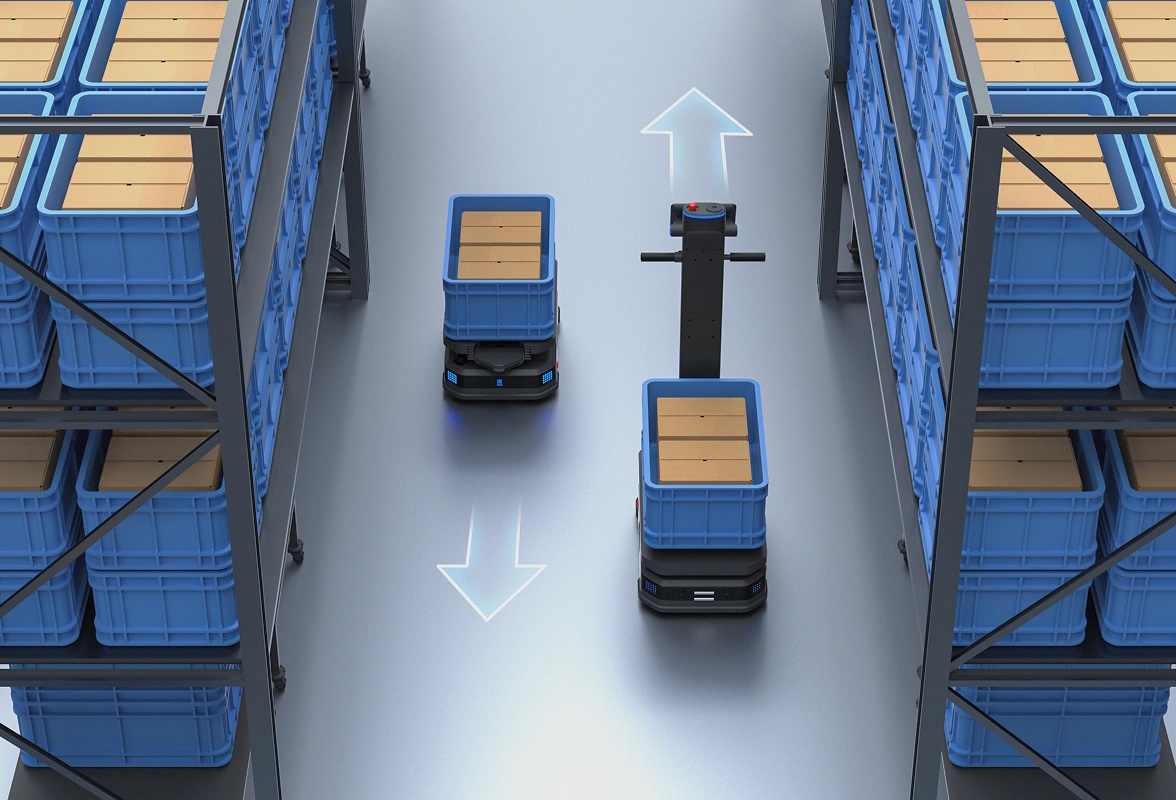

Based on path width and the robots‘ real-time load dimensions, the system intelligently determines whether to apply single-lane or dual-lane traffic modes. It dynamically adjusts routing strategies to maximize space utilization and improve multi-robot coordination efficiency in narrow environments.

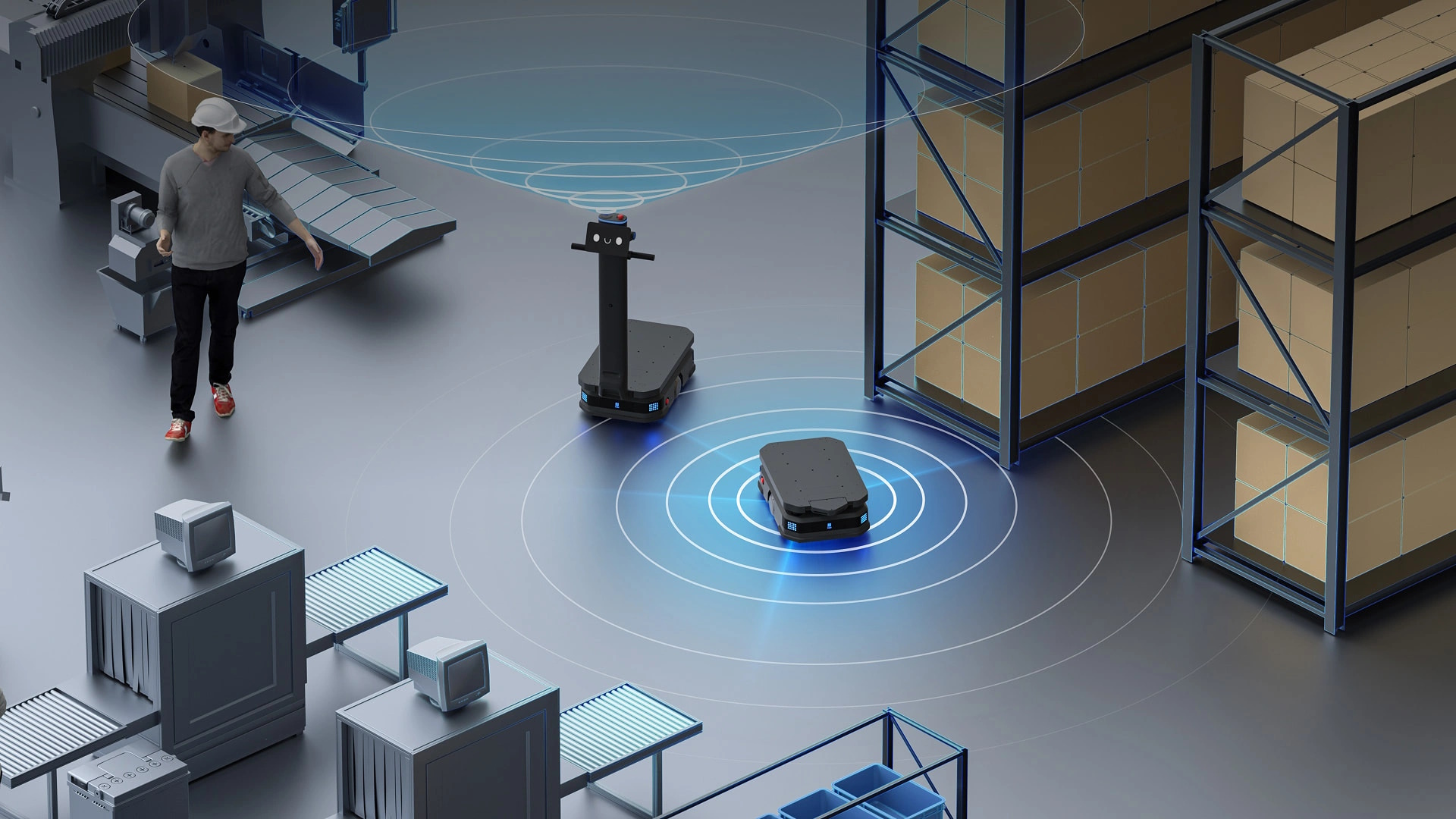

The T600 series can quickly adapt to changes in production layouts without the need for time-consuming reconfiguration or facility modifications.

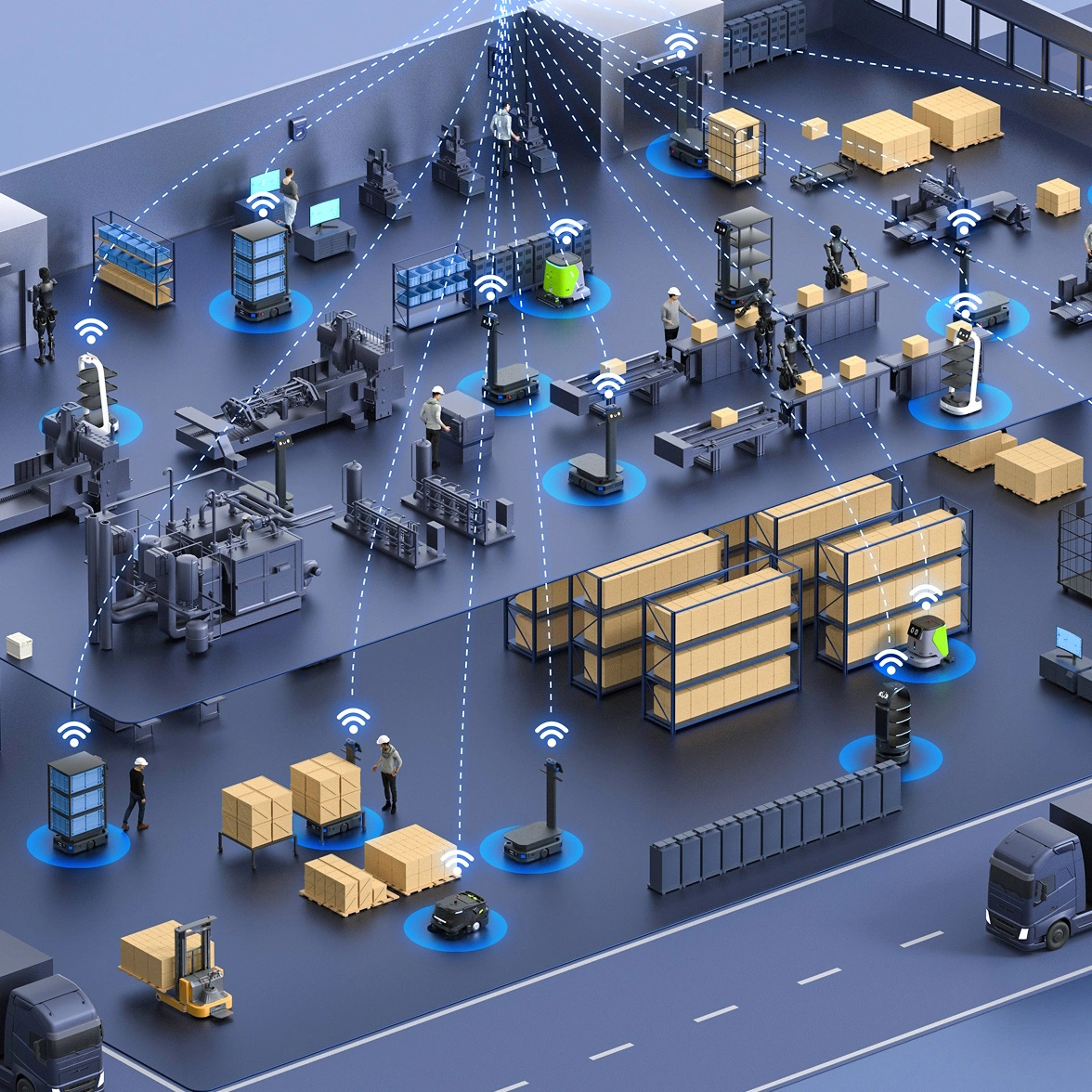

Compatible with the VDA5050 standard communication protocol, enabling collaborative scheduling with other compliant robots and systems. No custom development or complex interface integration is required, allowing for rapid deployment of a unified, efficient, and scalable flexible logistics network.

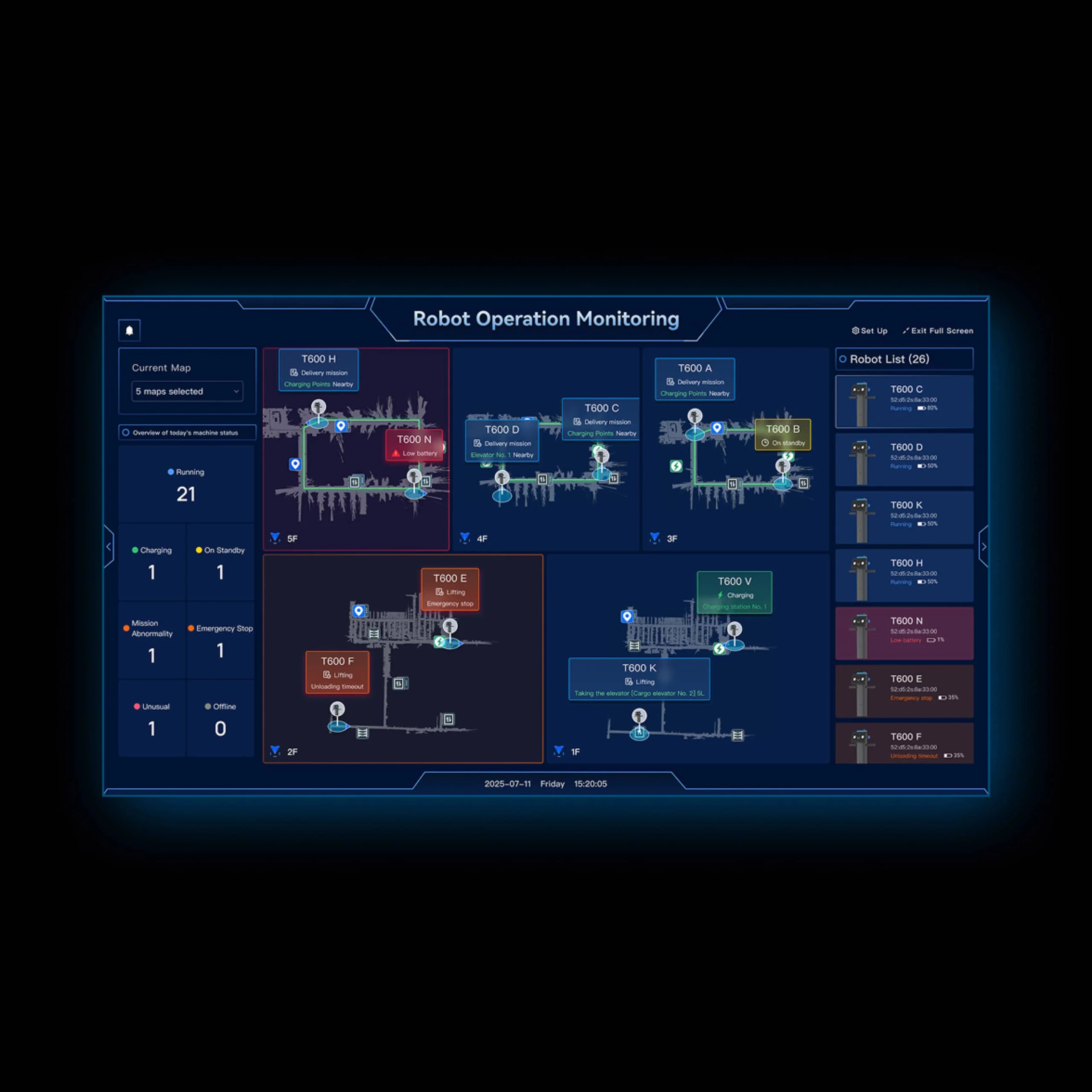

The system supports on-premises deployment to create a fully controlled and secure operating environment.

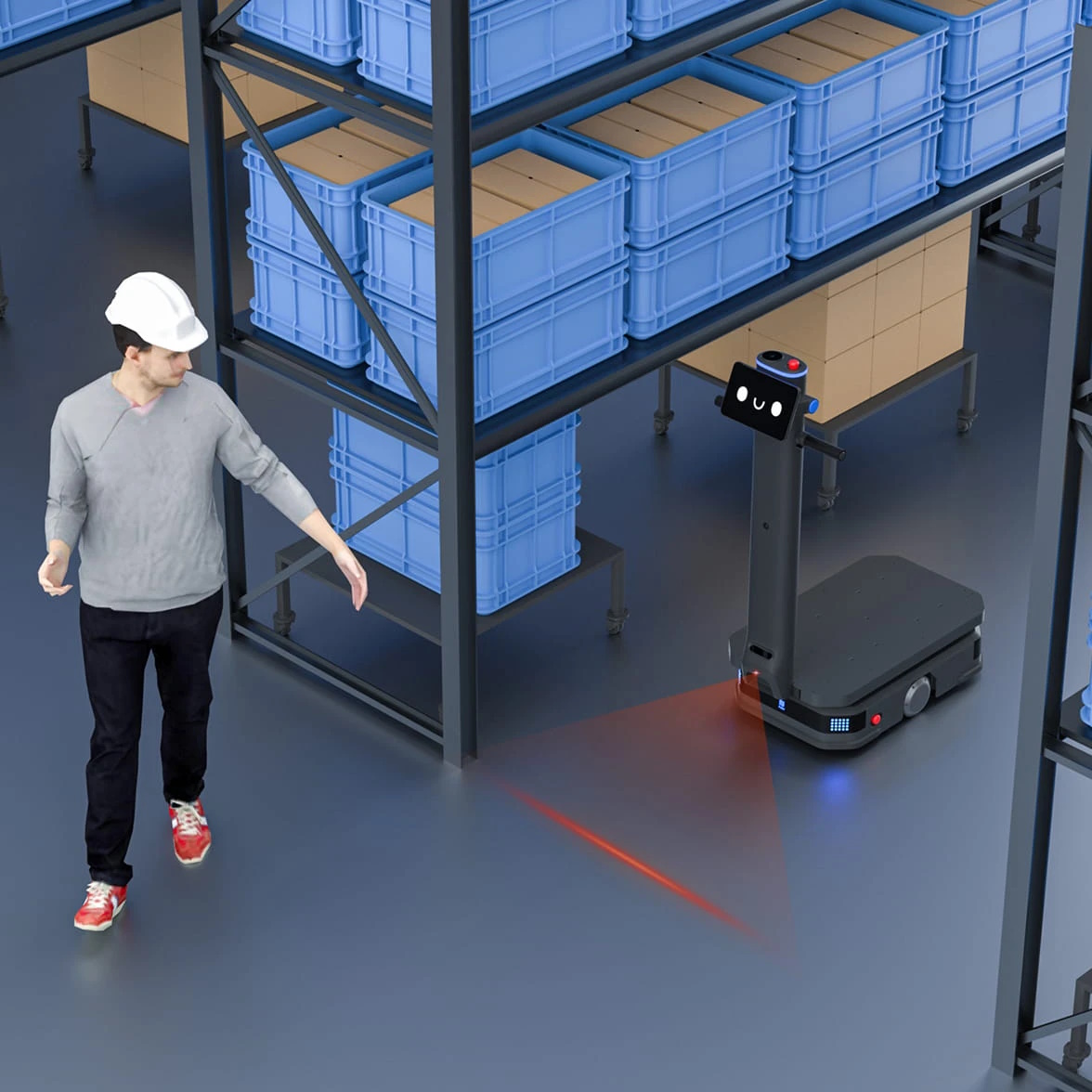

![Ground Projection[1]](https://xtrikerobotic.com/images/pudu-t600/11.jpg "Ground Projection[1]")
Projects a linear warning mark in front of the T600 to indicate the travel area, creating a safe human-robot collaborative workspace.

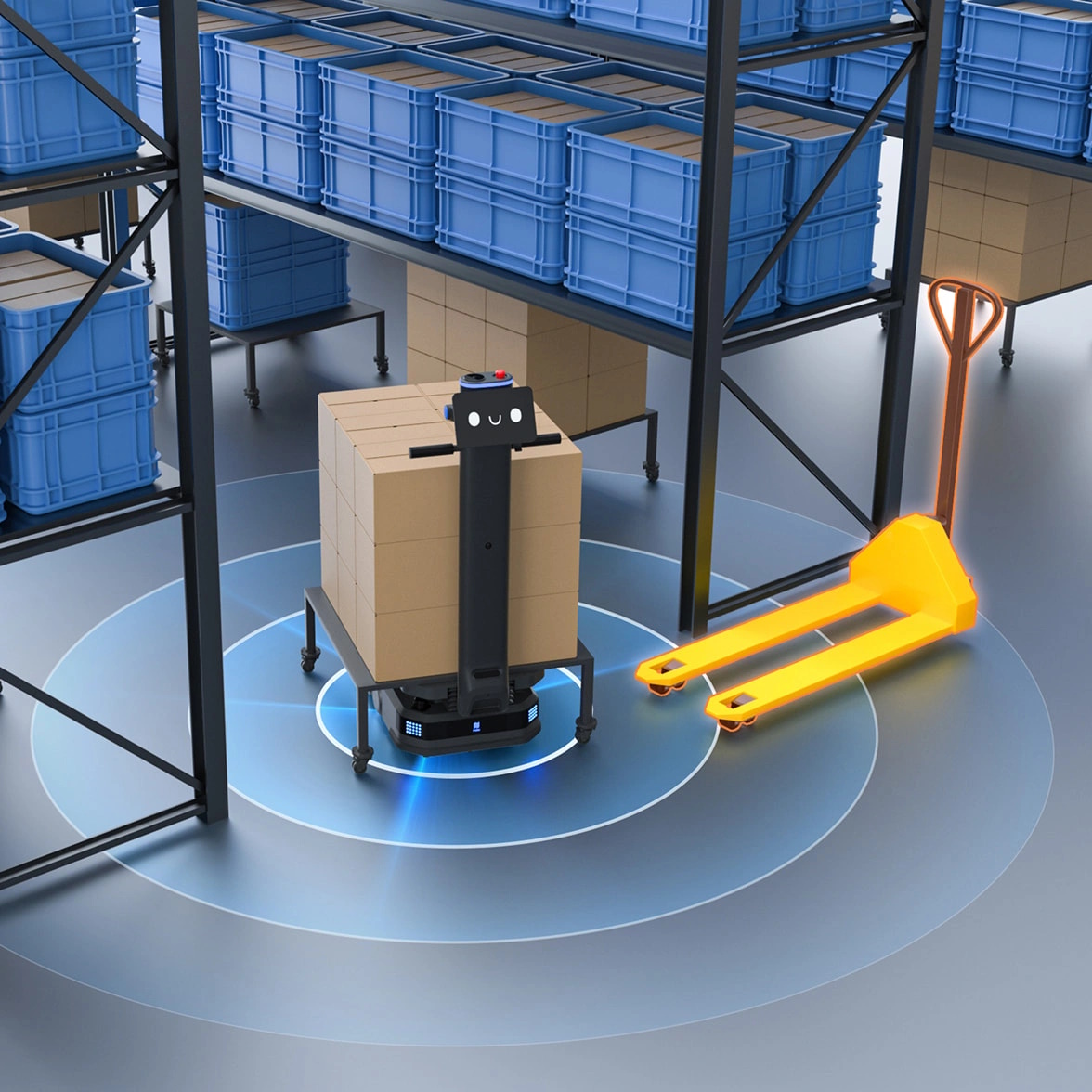

Autonomously detects low obstacles and flexibly navigates around them to ensure safe operation.

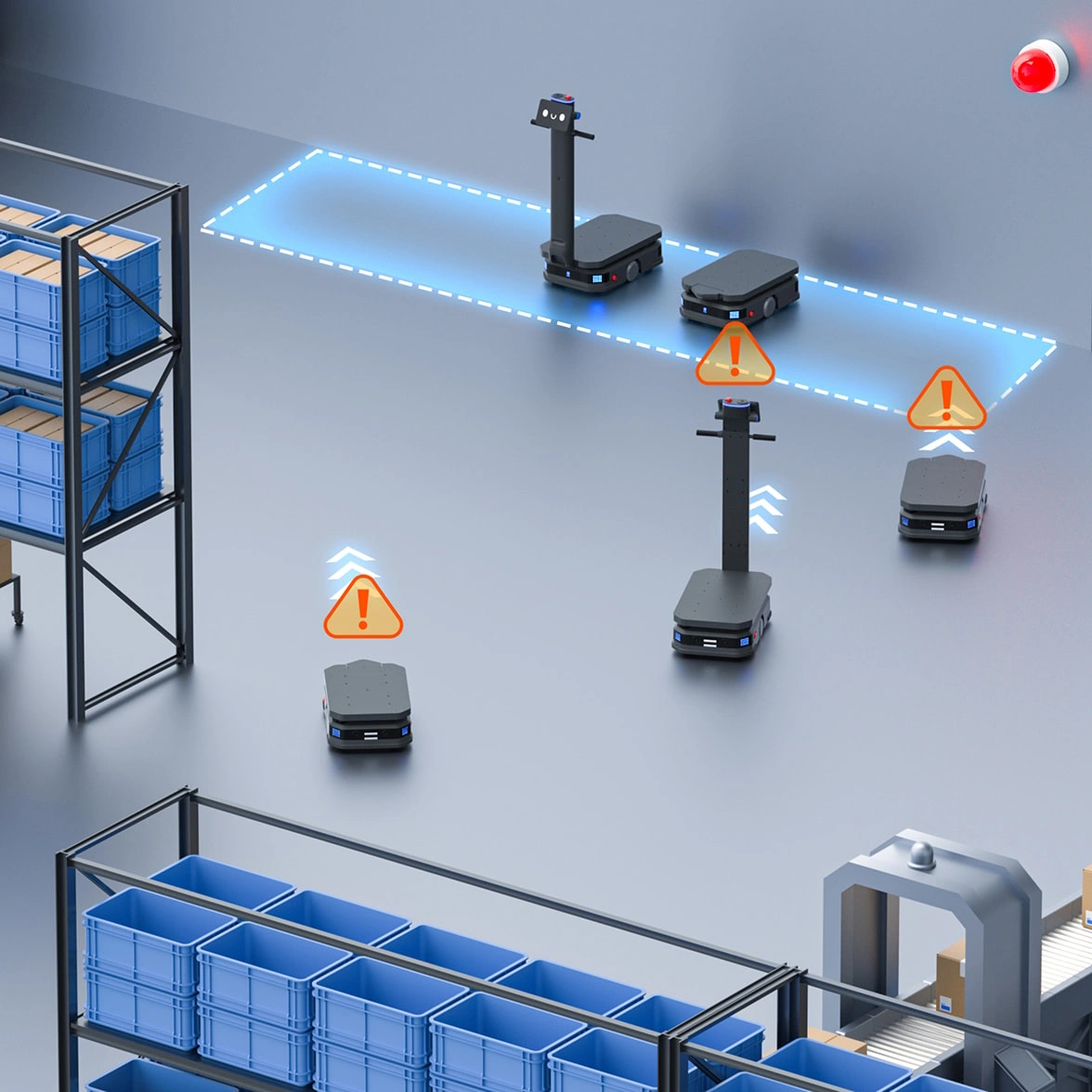

The PUDU T600 series is equipped with a dedicated disaster avoidance module that can intelligently receive signals such as fire alarms and earthquakes, and automatically execute avoidance plans:
Autonomous navigation to a safe area.
Intelligent judgment to stop and park at a safe location.
Equipped with an ergonomic handle assist switch, allowing the operator to easily control the T600 by simply pressing the switch, even when pushing heavy loads.
![Handle Assist Switch[2]](https://xtrikerobotic.com/images/pudu-t600/14.jpg "Handle Assist Switch[2]")

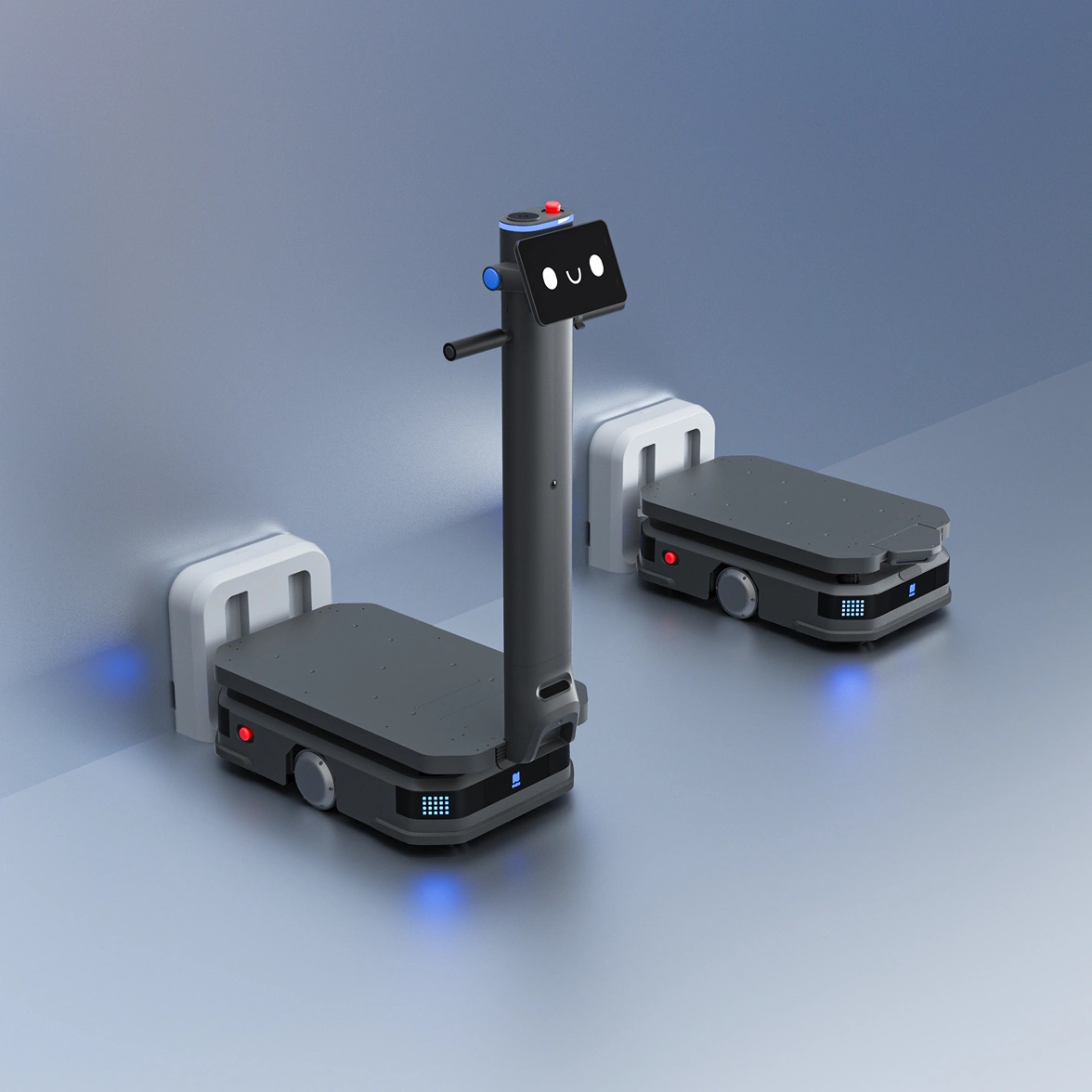

The T600 series offers a 12-hour battery life and supports a fast 2-hour charging capability. Equipped with both automatic recharging and battery replacement options, it ensures uninterrupted service to fulfill round-the-clock operational requirements.

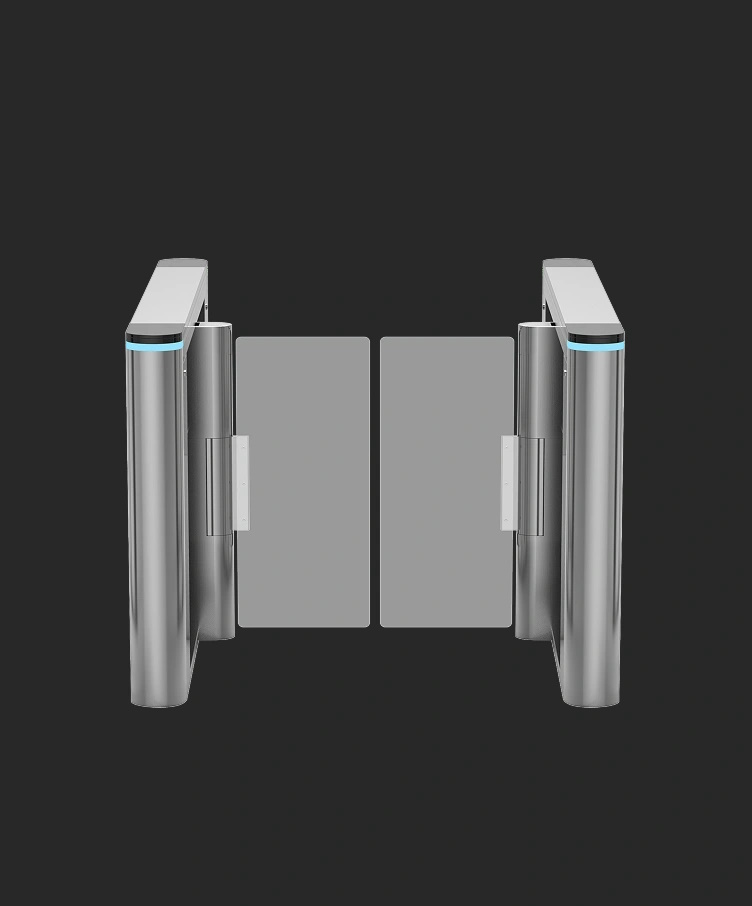

E-gate
Control
Elevator
Control

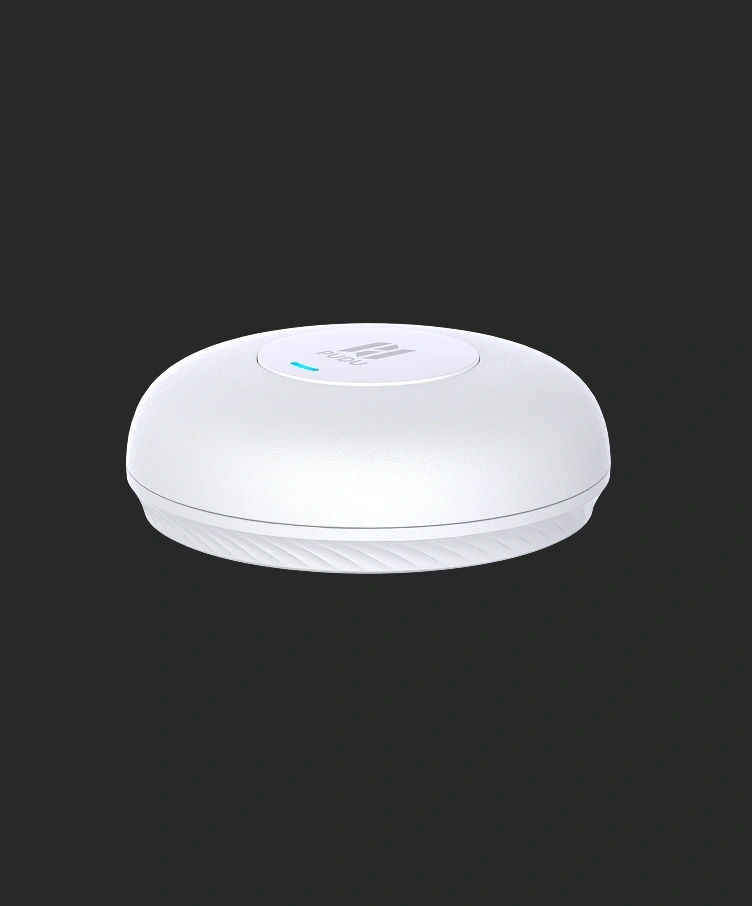

Call with
pager

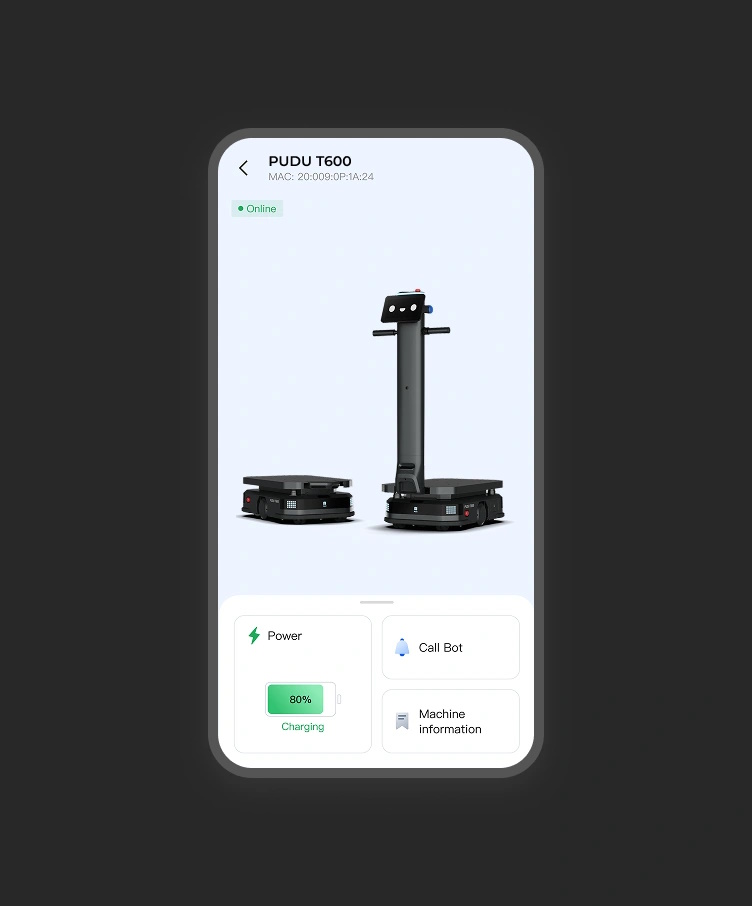

Manage with
Pudu Link app
| Dimensions | 960 mm * 500 mm * 1350 mm (37.8 in * 19.7 in * 53.1 in) |
| Weight | 112 KG (247 lbs) |
| Maximum load | 600 KG (1322 lbs) |
| Battery Capacity | 30 AH |
| Charging Time | 2 H (from 0% to 90%) |
| Run-time | 12 H (none load) |
| Cruise Speed | 0.2~1.2 m/s (0.67~3.94 ft/s) |
| Navigation Method | VSLAM + LiDAR SLAM |
| Minimum Passability | 70 cm (27.6 in) |
| Max. surmountable height | 10 mm (0.39 in) |
| Max. surmountable gap | 35 mm (1.38 in) |
| Operating Environment | 0°C ~ 40°C (32°F ~ 104°F) |
| Dimensions | 845 mm * 500 mm * 255 mm (33.3 in * 19.7 in * 10.0 in) |
| Weight | 94 KG (208 lbs) |
| Maximum load | 600 KG (1322 lbs) |
| Battery Capacity | 30 AH |
| Charging Time | 2 H (from 0% to 90%) |
| Run-time | 12 H (none load) |
| Cruise Speed | 0.2~1.2 m/s (0.67~3.94 ft/s) |
| Navigation Method | LiDAR SLAM only |
| Minimum Passability | 65 cm (25.6 in) |
| Max. surmountable height | 10 mm (0.39 in) |
| Max. surmountable gap | 35 mm (1.38 in) |
| Operating Environment | 0°C ~ 40°C (32°F ~ 104°F) |
